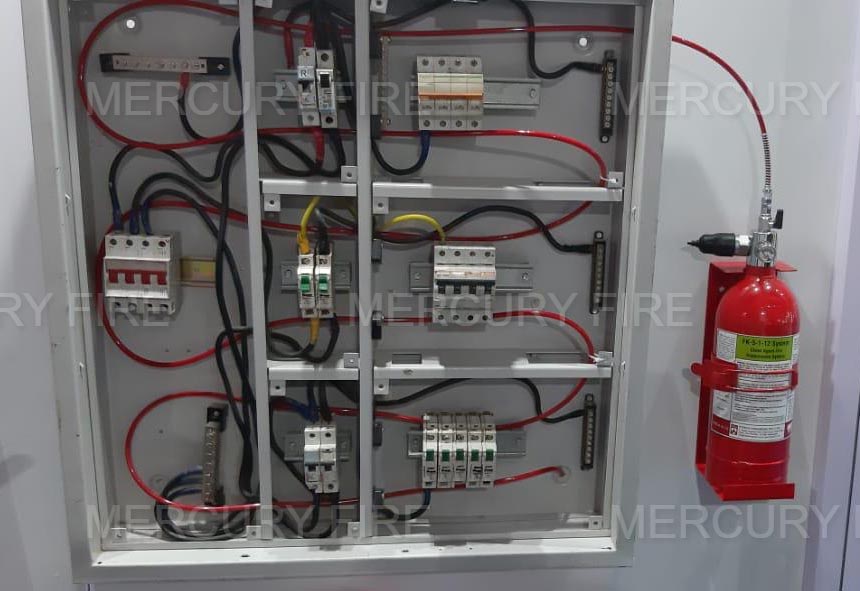

Electric Panel Protection
Automatic Clean Agent Fire Tubing System, Automatic CO2 Tubing System
| CAPACITY | 1KG | 2KG | 4KG | 6KG | 9KG |
|---|---|---|---|---|---|
| OPERATING TEMPERATURE | (-)30°C TO (+)60°C | (-)30°C TO (+)60°C | (-)30°C TO (+)60°C | (-)30°C TO (+)60°C | (-)30°C TO (+)60°C |
| MIN. TUBE IN METER | 5 Meter | 10 Meter | 20 Meter | 30 Meter | 40 Meter |
| DISCHARGE PERCENTAGE MIN. | 99% | 99% | 99% | 99% | 99% |
| DISCHARGE TIME MIN. | 8 Seconds | 8 Seconds | 8 Seconds | 8 Seconds | 8 Seconds |
| CHARGE PRESSURE | 15 Bar | 15 Bar | 15 Bar | 15 Bar | 15 Bar |
| TEST PRESSURE | 35 Bar | 35 Bar | 35 Bar | 35 Bar | 35 Bar |
| EXTINGUISHER MEDIA | HFC 227 ea | HFC 227 ea | HFC 227 ea | HFC 227 ea | HFC 227 ea |
| EXPELLANT | Dry Nitrogen | Dry Nitrogen | Dry Nitrogen | Dry Nitrogen | Dry Nitrogen |
| ANTI CORROSIVE TREATMENT | Phospheting | Phospheting | Phospheting | Phospheting | Phospheting |
| PAINTING | Epoxy polyester Powder Coating | Epoxy polyester Powder Coating | Epoxy polyester Powder Coating | Epoxy polyester Powder Coating | Epoxy polyester Powder Coating |
| TARE WEIGHT (APPROX) | 1.2 kgs. | 1.5 kgs. | 2.5 kgs. | 2.8 kgs. | 4 kgs. |
| GROSS WEIGHT (APPROX) | 2.2 kgs. | 3.5 kgs. | 6.5 kgs. | 8.8 kgs. | 13 kgs. |
| MODEL NO. | MFPL TCA 1 | MFPL TCA 2 | MFPL TCA 4 | MFPL TCA 6 | MFPL TCA 9 |
