Industrial Valves

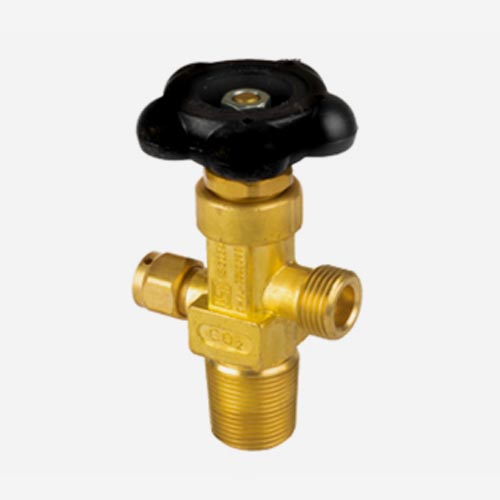

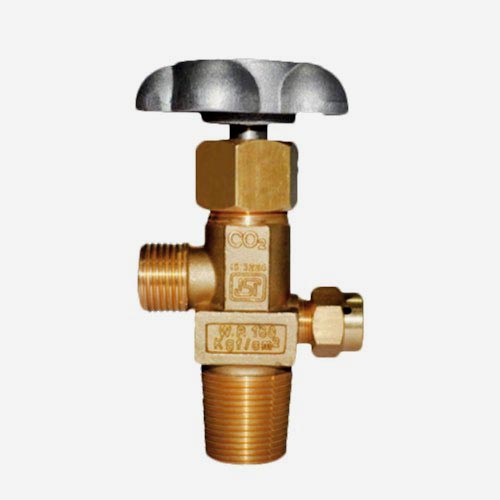

CO2 Wheel Type ISI Mark Valve
| MATERIAL CONSTRUCTION | |
|---|---|
| Valve Body | High Tensile Brass Forging |
| Spindle | As per IS 3224 |
| Hand Wheel | Cast Aluminium / Nylon |
| Sealing Tip | Nylon |
| Test Pressure | 155 KGF/CM2 |
| Outlet Threads | 21.8 mm Dia X 1.814 P., R.H. With Worth Profile, Outlet No - 7 , Conform To IS : 3224 - 2002 |
| Safety Device | Fitted with safety disc. With brust pressure 200 - 220 kg/cm2 |

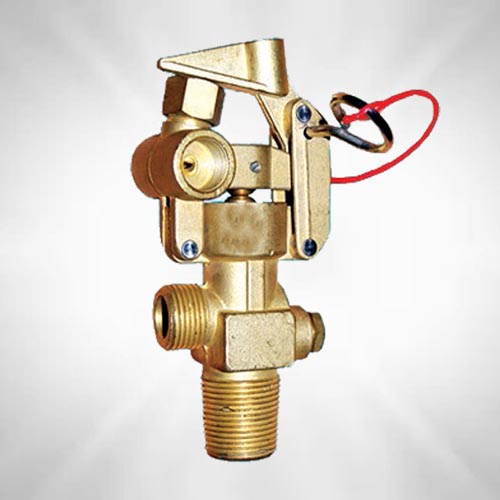

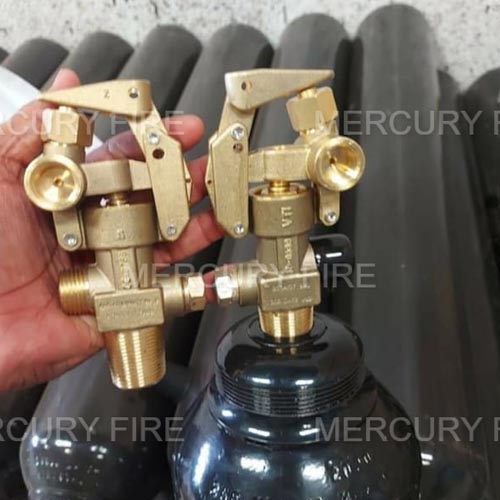

CO2 Squeeze Grip Valve
| MATERIAL CONSTRUCTION | |
|---|---|
| Valve Body | High Tensile Brass Forging |
| Spindle | Brass IS : 319 |
| Hand grip type | Steel to IS : 513 |
| Sealing Tip | Nitrile Rubber |
| Test Pressure | 155 KGF/CM2 |
| Outlet Threads | 21.8 mm Dia X 1.814 P., R.H. With Worth Profile, Outlet No - 7 , Conform To IS : 3224 - 2002 |
| Safety Device | Fitted with safety disc. With brust pressure 200 - 220 kg/cm2 |

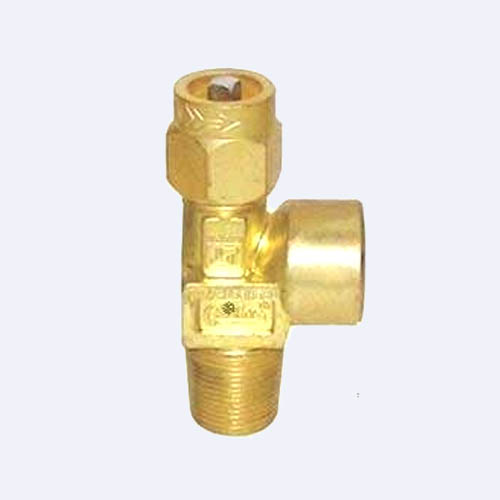

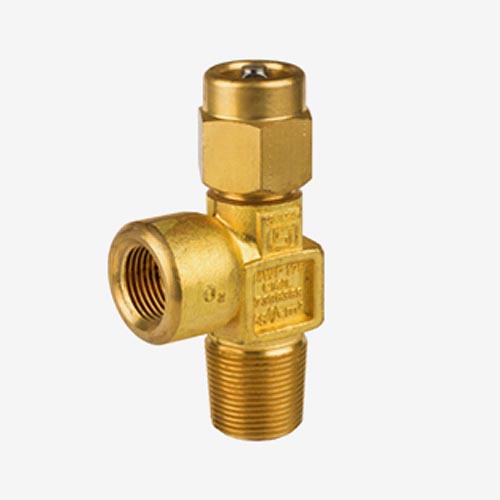

Oxygen Valve
| MATERIAL CONSTRUCTION | |
|---|---|
| Valve Body | High Tensile Brass Forging |
| Spindle | S.S. 304 |
| Handle | Steel, close ended spanner |
| Test Pressure | 161 KGF/CM2 |
| Outlet Threads | 5/8 BSP Female (R.H.), Outlet No - 3 conforming to IS : 3224 - 2002 |
| Note | No Oil or Grease to be used as lubricant. Use of oil may cause serious explosion. |
Nitrogen Valve
| MATERIAL CONSTRUCTION | |
|---|---|
| Valve Body | High Tensile Brass Forging |
| Spindle | S.S. 304 |
| Handle | Steel, close ended spanner |
| Test Pressure | 161 KGF/CM2 |
| Outlet Threads | 3/4 BSP Dia Male Threads (R.H.), Outlet No - 20 conforming to IS : 3224 - 2002 |
| Note | No Oil or Grease to be used as lubricant. |
