Hydrant System & Accessories

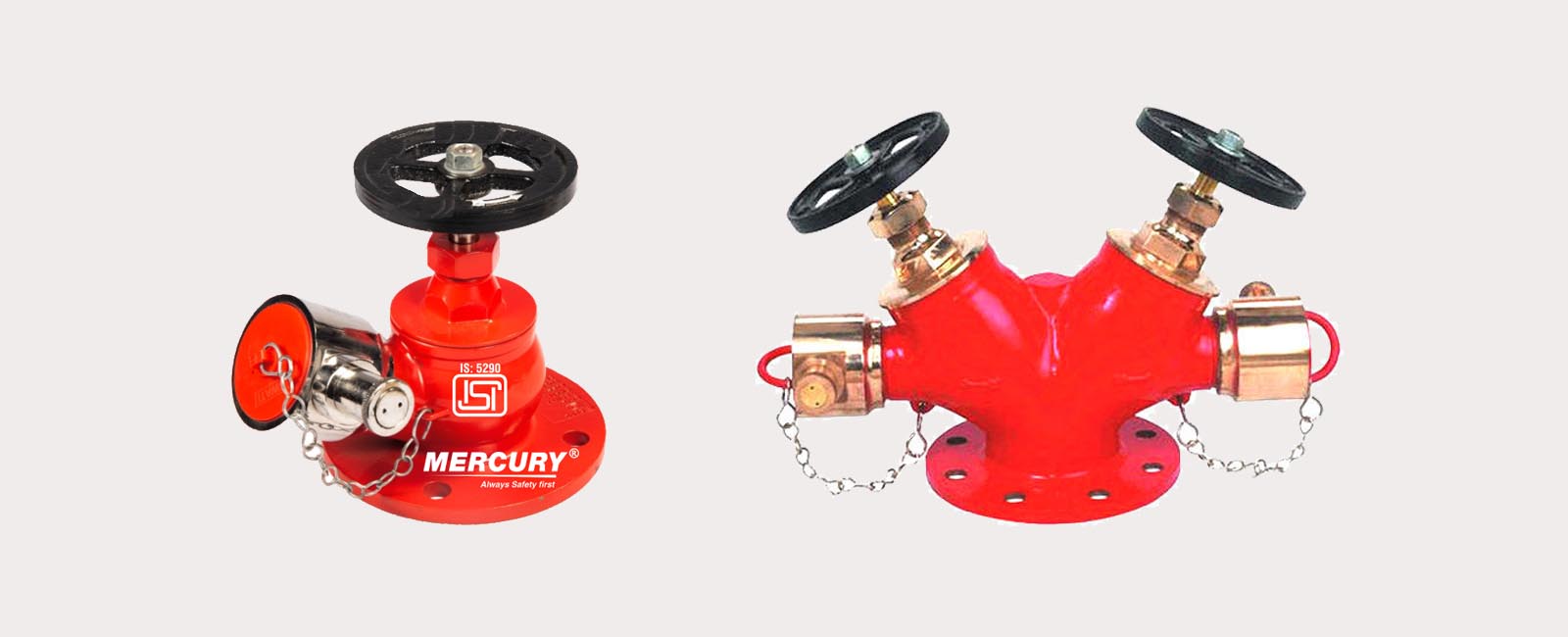

Hydrant Valves - Single Hydrant & Double Hydrant
| MATERIAL | GUN METAL | STAINLESS STEEL |
|---|---|---|
| Hydraulic Test Pressure | 21KG./CM² | 21KG./CM² |
| Water Tightness Test | 15 KG/CM² | 15 KG/CM² |
| Flow Rate for Single Hydrant | 900 LPM AT 7KG Pressure | 900 LPM AT 7KG Pressure |
| Flow Rate for Double Hydrant | 1800 LPM AT 7KG Pressure | 1800 LPM AT 7KG Pressure |
| Body, Bonet Assembly | LTB2-IS 318 | LTB2-IS 318 |
| Spindle | Brass Rod IS: 319/320 | Brass Rod IS: 319/320 |
| Operating Wheel | LCI - IS:210 | CI - IS:210 |
| Rubber Washer | IS:937 (TYPE-3) | IS:937 (TYPE-3) |
| Spring | Phosphorus Wire IS:7608 | Phosphorus Wire IS:7608 |
| Gland Packing | Asbestos Rope IS 4687 (Type-3) | Asbestos Rope IS 4687 (Type-3) |
